Single Screw Press Machine|Celery Juice Press Machine

  • Support Customization: Yes
  • Brand: Gelgoog
  • Warranty Time:12 Months
  • Country Of Origin:China
  • Payment: T/T, L/C, Trade Assurance, Western Union
Features

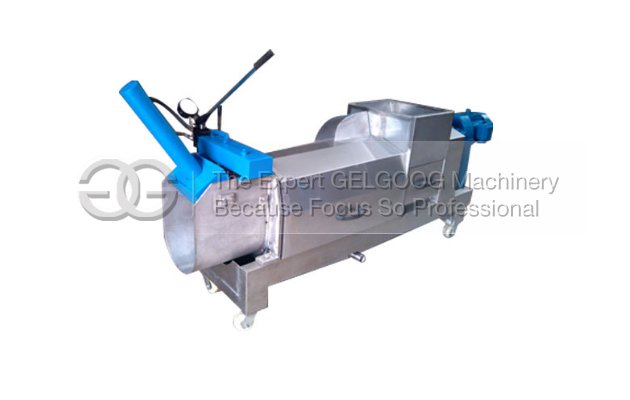

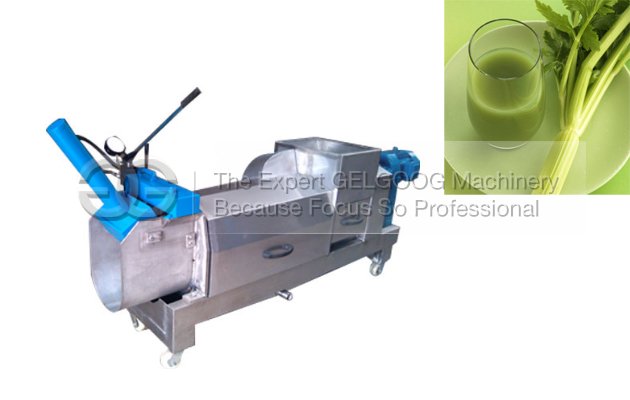

The Single Screw Press Machine is can be used to press celery juice and defiberability.

This machine is compact, portable screw continuous presses. From the rack, reducer composition, the feed section, part juice, cover and electrical control and so on. There are three part of screw:feed screw, press screw and extrusion screw. According the the material back stop device to achieved through screen cylinder with. and the material is extruded through the outlet of the material blocking the door and the backlog forced the screen cylinder to achieve.

The body has a central feed box material into the chamber, the spiral flow squeeze juice into sauce pan filled by the screen cylinder, and then the juice outflow from the tube; slag discharged from the body of the press after the end of the screen cylinder to force the door.

Technical Data
Capacity 1.5T/H 3T/H 5T/H 10T/H 20T/H 40T/H
Power of hydraulic system 1-5Mpa 1-5Mpa 2-6Mpa 2-8Mpa 2-8Mpa 2-10Mpa
motor power 4 4 7.5 15 18 22
Weight(kg) 800 1200 2000 2500 3000 4500
Size(mm) 2565*480*905 3200*560*1120 4100*900*1500 4620*920*1550 4950*1100*1730 6000*1200*2000

FAQ
Q:What’s the Packing and Delivery ?
A: We adopt the export standard wooden packing . And we can deliever through sea , DHL , Train transportation .

Q. When the product will be deliver ,plz?
A.Generally ,we will delivery commodity within 7 days,except  custom-made.


Q:How about the dehydration rate ?
A:Different raw material have dehydration rate.contact us for your raw material dehydration rate.
