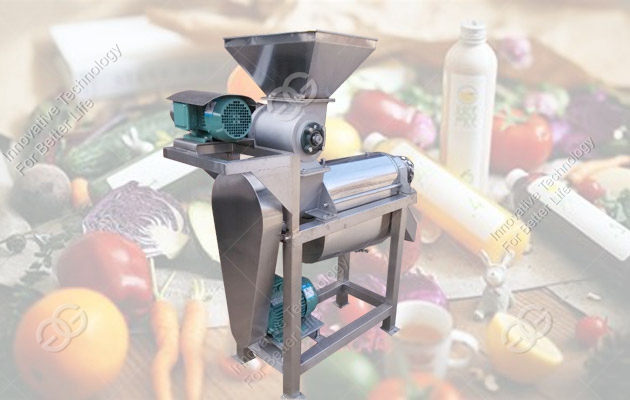

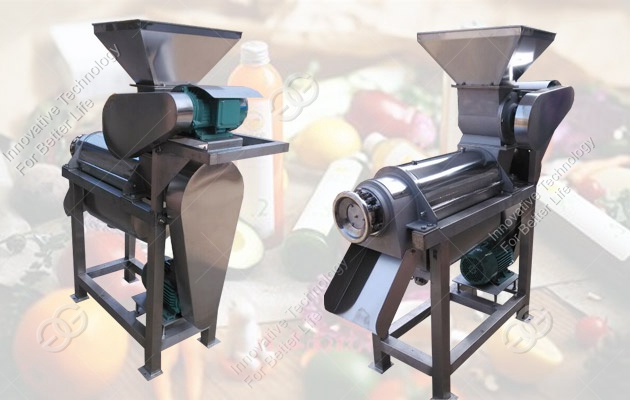

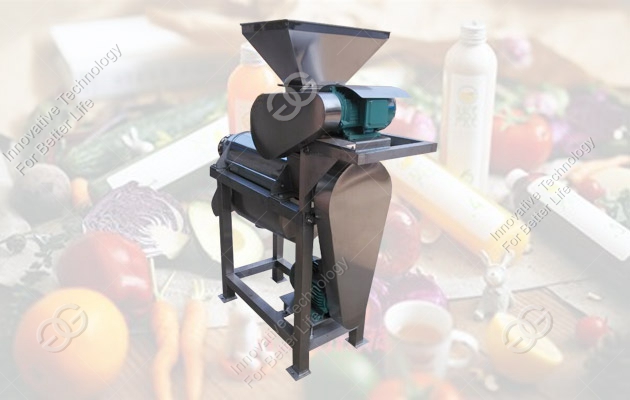

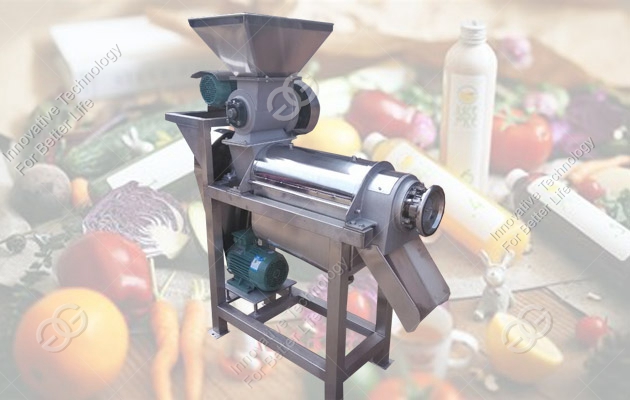

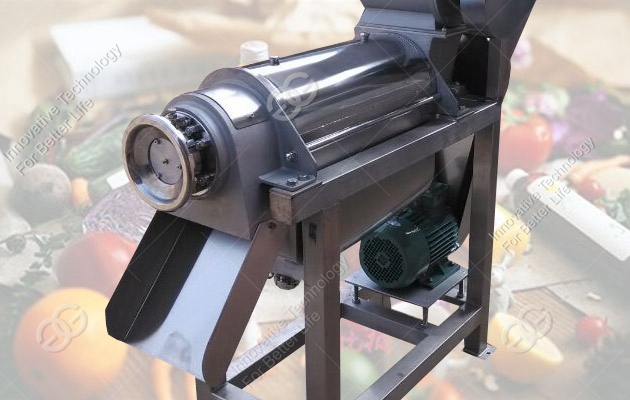

Crush type Fruit Juice Extraction Machine

  • MOQ:1 set
  • Brand:GELGOOG MACHINERY
  • Certification:CE
  • Warranty Time:12 Months
  • Country Of Origin:China
Features
Feature of fruit juice extraction machine:
This Crush type Fruit Juice Extraction Machine is suitable for crushing berry fruit and vegetable, such as orange,apple,pineapple,coconut meat milk,tomato ect. Meanwhile, it also can crush the cooked and softening kernel fruit and vegetable, crushing size is 3 to 8 mm.then passing the crushed materials into spiral system, which improving the juicing effect.

1.Screen bore diameter:0.6mm; completely automatic juicing machine
2.China crushing and juice machine have function both crushing all different kinds of fruit and extracting juice. Such as tomato, apple, orange, pineapple, spinach,strawberry and so on;
3. Slag discharging and juicing separate automatically.
4. High juice making rate, make full usage of the raw material
5.China single screw type fruit juice making machine is small, easy to operate and move.
6.The china single screw apple juicing machine material is stainless steel 304

Introduction of the fruit juice extraction machine:
Structure: this fruit juice extracting equipment is mainly consist of the crushing equipment in the feed hopper, front supporting base, screw, filter screen, juice device, back base, slag spout and so on.

1:The cheap fruit juice extracting machine is mainly used to extract fruit and vegetable juices. The juice extracting machine is single screw type juice extractor. We also have double-screw type juice extraction machine. The main components of the equipment is spiral, which increases gradually along the material residue outlet direction while the screw pitch reduces gradually. When the materials are pushed in by the spiral, due to the volume contraction of the spiral cavity, the materials are extracted. The high juicing rate juice machine also called crushing and juicing combined machine.
2.Spiral juicer combined the function of breaking fruit and screw juicer,it can remove the residues itself.fruit extractor with high quality

Working Principle of industrial juicer machine:high juicing rate fruit juice making machine

1.After these washed by washing machine , then will put into the juice machine. When the raw materials are added into the material feeding hopper, they receive pressure under the boosting of the spiral and the extracted juices will flow into the juice container through the filter screen, and the waste materials will be discharged through the ring interval formed between the spiral and the pressure adjusting taper part.
 2.The movement towards the axial direction by the pressure adjusting head can adjust the size of interval so as to adjust the juice extracting rate.

As the juice crushing and juicing machine manufacturer in China,we provide all the customer with high juicing rate and high quality juice extracting machine with low price. We also industrial pomegranate juicer machine and juice filter and spiral coconut meat blanching machine for you. If you want buy fruit juice making machine or have any problem you can leave message or contact us freely.
Technical Data
Model Capacity Power(KW) Size
GG-0.5 0.5T/H 1.5+0.55KW 900*320*1100MM
GG-1.5 1.5T/H 4+1.5 KW 1560*450*1640MM
GG-2.5 2.5T/H 11+2.2KW 2200×600×1960MM

FAQ
Q: What kind of vegetables and fruit ere suitable for the juice machine?
Applicable vegetables: ginger, garlic, tomatoes, carrots, etc.
Applicable fruit: apple, pear, pineapple, watermelon, seabuckthorn fruit, etc.
If you have a lot of fruit fiber, you can contact us to confirm whether it can be handled.

Q: What is the aperture of the filter screen of the machine?
Conventional 0.6mm screen, 0.4 and 0.8mm customized.

Q: What's the voltage of the machine?
A: Conventional voltage 380V 50Hz three-phase power; 0.5T/H, 1T/H model can also single-phase 220V 50hz.
