Grape Stem Removing And Crushing Machine|Grape Destemmer and crushing machine

  • MOQ:1
  • Brand:GELGOOG MACHINERY
  • Certification:CE
  • Warranty Time:12 Months
  • Country Of Origin:China
Features

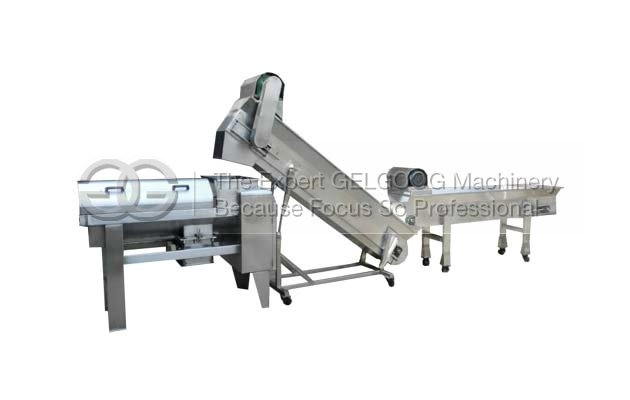

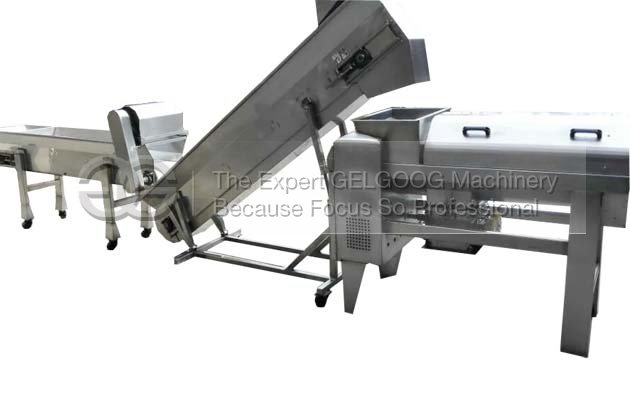

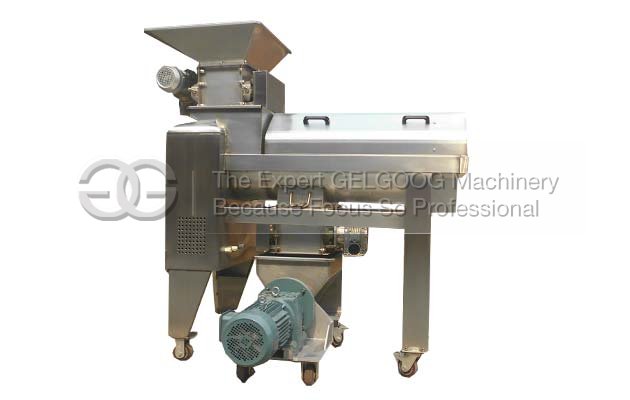

The grape crusher and destemmer machine is special to process fresh grapes of wineries and fruit juice  producer.
This grape crusher and destemmer machine can separate stems from grapes and cut up  grapes,then crushed  grapes are  conveyed to the process of next.

Working principle of Grape Setm Removing And Crushing Machine:
1.Grapes are conveyed to stemming rotary screen quantificationally from hopper by conveying screw.
2.Stems are separated from grapes by blades on stemming shaft,with the revolve of stemming shaft.Stemming blades are installed on the spindle spirally and throw stems away from the end of rotary screen with high revolving speed.
3.Stemmed grapes fall into crushing plant below from round holes on rotary screen.
4.Grapes are broken according to the requirement of processing with the rotary extrusion of two sets of crusher roll.
5.Broken grapes fall into screw pump are conveyed to the process of next.

grape braking and destemming machine|grape crusher and destemmer machine
Technical Data
Model GGJCP-5 GGJCP-10 GGJCP-20
Capacity 5-6t/h 7-10t/h 15-20t/h
Size of Belt Screen 20-35mm 20-35mm 20-35mm
The space of crusher roller 3-15mm 3-15mm 3-15mm
Power

Feeding and Destemming 1.5kw 2.2kw 3kw
Crushing 0.75kw 1.1kw 1.1kw
Screw
Pump

Power 3kw 5.5kw 7.5kw
Diameter of Exit Pipe

75mm 100mm 100mm
Weight 578Kg 635Kg 875Kg
Dimension 1816*710*1352 2201*894*1574 3340*1320*2550
