Lemon Half Cutting And Juice Extracting Machine

  • MOQ:1 set
  • Brand:GELGOOG MACHINERY
  • Certification:CE
  • Warranty Time:12 Months
  • Country Of Origin:China
Features
Feather:

The machine part touch the food is made of stainless steel and Food grade nylon rubber.

Cut half a juicer, the juicer take extrusion type, raw material after cleaning, without peeling, directly into the machine, complete automatic cut half, juice, the machine parts contacted with material for the production of stainless steel and food grade nylon rubber.Suitable for round orange, orange, grapefruit, lemon, and pomegranate fruit cut half juice cut half juicer, the juicer take extrusion type, raw material after cleaning, without peeling, directly into the machine, complete automatic cut half, juice, the machine parts contacted with material for the production of stainless steel and food grade nylon rubber.Suitable for round orange, orange, grapefruit, lemon, pomegranate fruit cut half juice, etc

Introduction:
This machine has the function of fruit half cutting, peeling and juicing. The raw fruit doesn’t need peeling before juicing by this machine. The worker just need to feed the clean fruit into the machine, the machine will finish half cutting, peeling and juicing whole process.
Working principle:

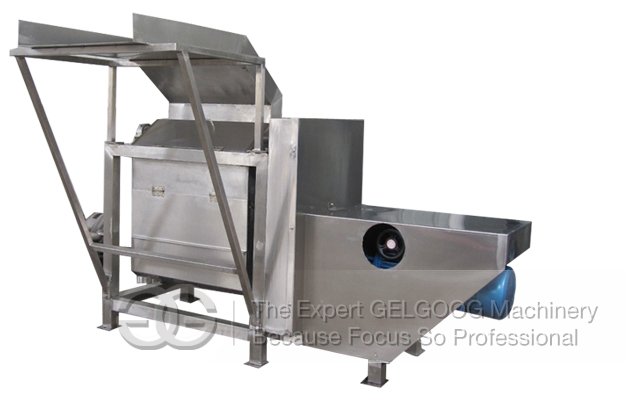

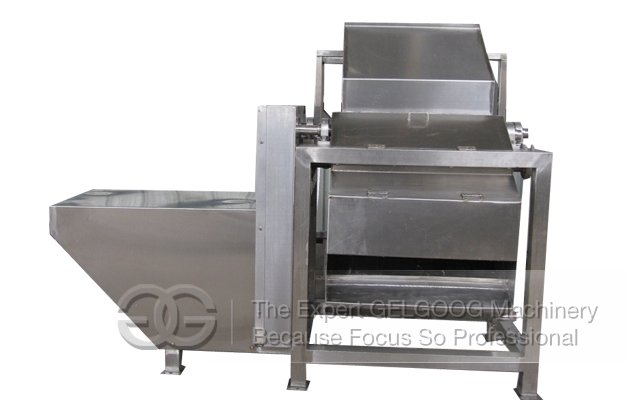

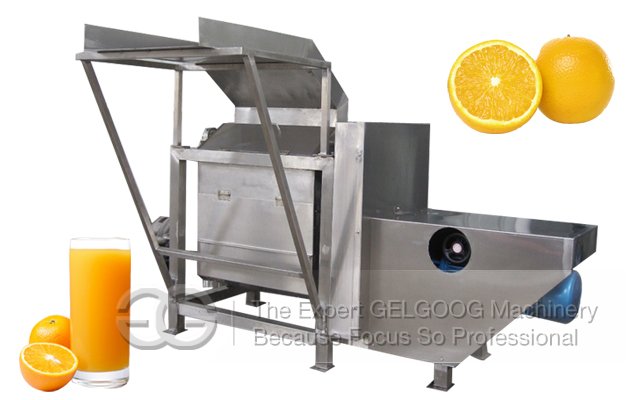

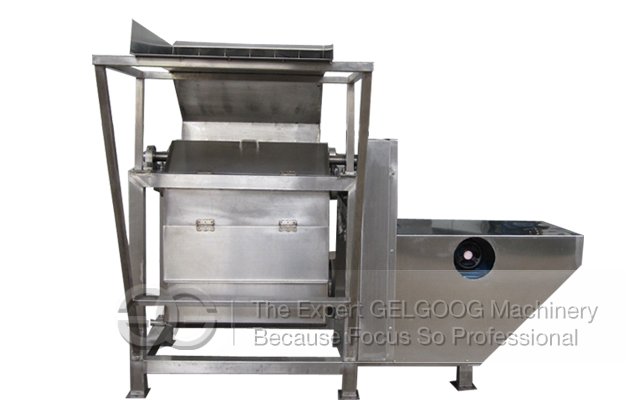

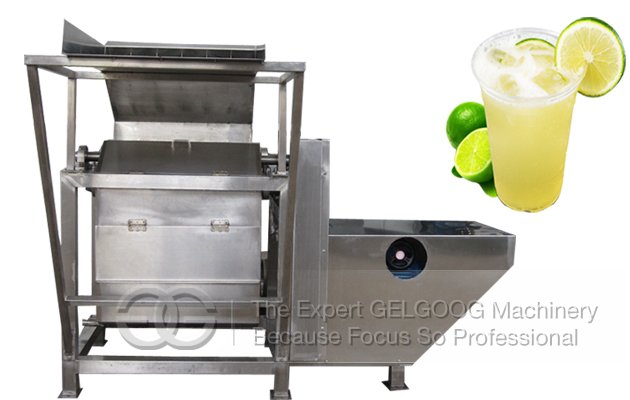

This machine is mainly composed of frame, concave and convex ball roll, feed hopper, slag bucket, juice bucket, driving speed reducer, etc.

the processing is washing the raw material (no need to peel the fruit skin)-putting the fruits into feed hopper-putting the fruits to points hole by worker- two concave ball roll to roll to send raw material to knives- two concave ball roll to roll to make juice for the cutted fruits-seperate the juice and fruits skin by filter screen.

Oranges into the materials holes falling into the concave spherical roller, two concave spherical rollers roll, pressure oranges to half cut knife,oranges after half cutting through  two convex spherical rollers for juicing.After juicing, orange peel and juice being brought into the groove, seperate the peel and juice by filter screen,finish half cutting and juicing.

Technical Data
Model GG-120
Power 380v,2.2kw
Material diameter Φ50-90mm
Capacity 120-160pcs/min
Weight 400Kg
Dimension 1700*1200*1200mm

FAQ
Q. when the product will be deliver ,plz?
A.Generally ,we will delivery commodity within 7 days,except  custom-made.

 Q:What if customers know little about import processing?
 A: Our factory has rich experience in export.We will assist customers with needs step by step, from placing orders to receiving poutry feed manufacturing equipment.

Q: What's the material of the machine?
It is made of stainless steel

Q: Do you supply samples ?
A: We are factory, and making machines costs, Large order , Large discount , we can not offer sample machines .
