Green Bean Head And End Cutting Machine

  • Support Customization: Yes
  • Brand: Gelgoog
  • Warranty Time:12 Months
  • Country Of Origin:China
  • Payment: T/T, L/C, Trade Assurance, Western Union
Features
Feature:

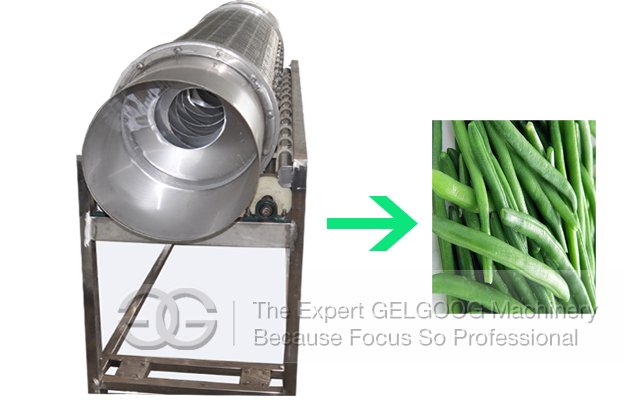

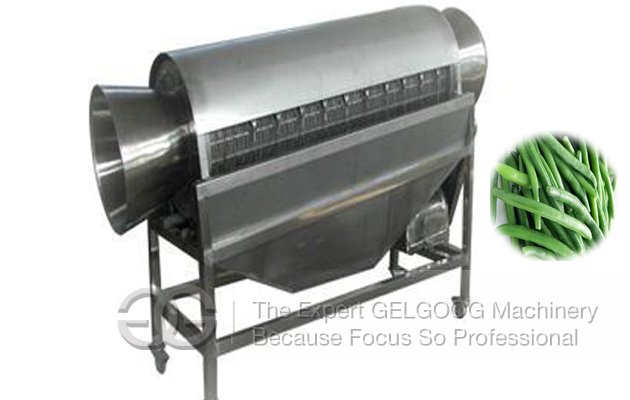

Green Bean Head And End Cutting Machine can do the work of cutting or 'snipping' the ends from green beans. It has a high capacity and flexibility and provides a gentle product treatment. The ends cutter is easy to clean to keep a hygiene standard.Beans are fed into the in-feed hopper and travel through a series of divider rings in the cutting drum. As the beans tumble gentle the ends of the beans will protrude through the slots in the plastic cutting segments and will travel past a bank of knives where the protruding end is cut off. The beans are then discharged through the out-feed chute whereas the cut ends fall through the bottom of the machine. It used to cut the two ends of green bean,put the bean into the machine,it can remove the head and end automatically,the capacity can reach 300-400kg per hour.

Advantage:

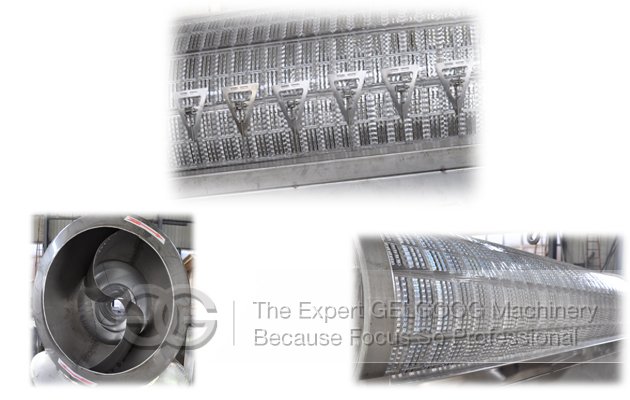

Green bean cutting machine is made of high quality triangular steel knife, a mix of plastic arc cutting tools, and other important components. Using plastic cylinder composed of arc knife in reducer drive low rolling evenly and permanent steel arc triangle knife and plastic cylinder surface close to cut green beans within the cylinder rotate trough go out useless in the end, achieve complete removal of the effect.

Green bean cutting machine used to cut the two ends of green bean,put the bean into the machine,it can remove the head and end automatically,the capacity can reach 300-400kg per hour.

Green bean tail cutting with high efficiency, high yield, simple structure, stable and reliable running, it can replace heavy manual work, raise the production efficiency, save a large number of Labour cost, it is the ideal equipment of quick-frozen vegetables processing.
Technical Data
Model Voltage Power Dimension Weight Capacity
GG-350 380v 1.5kw 2700*800*1550mm 150kg 300-400kg/h

FAQ
Q:Is it automatic model or manual ?
A: This is full automatic model , it is high efficiency .

Q: What’s the material of the machine  ?
A:The machine is made of SUS 304, which is high standard material .

Q:Can the size adjustable ?
A : The feeding and size can be adjusted , the size is custumed and confirm .

Q: How to make different product in one machine ?
A:The machine is multifunctional , it can through change the mould of the machine, and you can make dumpling , samosa , ect.
