Features
The automatic ginger powder production line is used to make ginger powder or turmeric powder. Process fresh ginger cleaning to flour milling through different processing techniques. The ginger powder seasoning produced can meet the cooking needs of different families, restaurants, and food processing plants. Popular in the market.
The ginger powder production line mainly includes: brush cleaning machine, hoist, slicer, air dryer, drying equipment, ginger powder mill.
The specific ginger powder production line is made according to the output needs of customers.

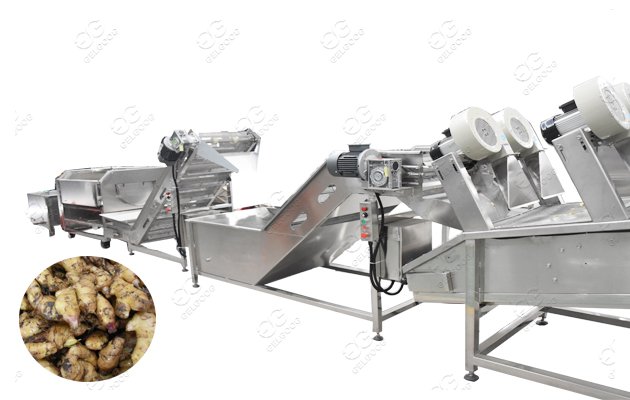

Brush type ginger cleaning machine: used to clean the mud, dust and other impurities attached to the surface of the ginger root, and can have the effect of peeling. The special design of spiral feeding structure is adopted to realize fully automatic work.

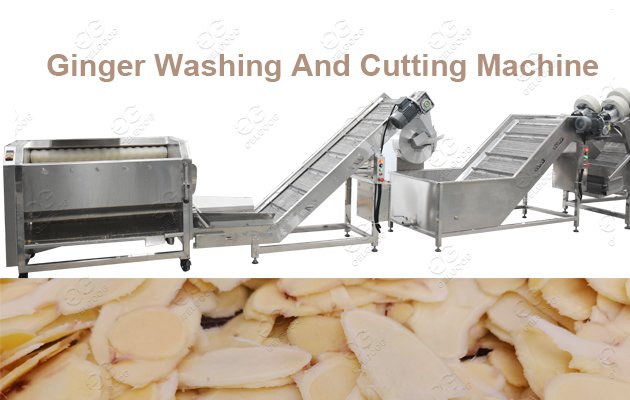

Ginger slicer: The thickness of ginger slices is uniform and the slice thickness can be adjusted as required.
Ginger Air dryer machine: Effectively remove the moisture on the surface of ginger slices after rinsing, greatly shorten the drying cycle, suitable for assembly line operation, and improve the degree of enterprise production automation.
Ginger dehydrator machine : adopts multi-layer mobile stainless steel mesh belt, automatic feeding and discharging, saving a lot of labor cost.

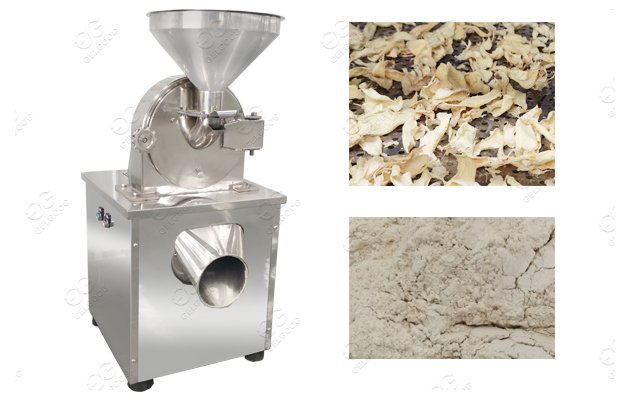

Ginger powder grinding machine: Crush the dried ginger slices, the fineness can be from 10 to 200 mesh.
This is our ginger powder process plant video show, you can see it if you need.
The ginger powder production line mainly includes: brush cleaning machine, hoist, slicer, air dryer, drying equipment, ginger powder mill.
The specific ginger powder production line is made according to the output needs of customers.
Brush type ginger cleaning machine: used to clean the mud, dust and other impurities attached to the surface of the ginger root, and can have the effect of peeling. The special design of spiral feeding structure is adopted to realize fully automatic work.
Ginger slicer: The thickness of ginger slices is uniform and the slice thickness can be adjusted as required.
Ginger Air dryer machine: Effectively remove the moisture on the surface of ginger slices after rinsing, greatly shorten the drying cycle, suitable for assembly line operation, and improve the degree of enterprise production automation.
Ginger dehydrator machine : adopts multi-layer mobile stainless steel mesh belt, automatic feeding and discharging, saving a lot of labor cost.
Ginger powder grinding machine: Crush the dried ginger slices, the fineness can be from 10 to 200 mesh.
This is our ginger powder process plant video show, you can see it if you need.
Technical Data
Name | Parameter |
1,Lifting machine |
Power:0.75 kw Voltage:380v/50hz/Three phase Size:1800*1000*1800 mm Conveying speed is adjustable. Note:You can add citric acid into the water tank to avoid the brown color. |
2,Ginger washing peeling machine |
Power:3kw Voltage:380V/50HZ/Three phase Size:2800*850*800mm Capacity:1-1.2ton/h Roller length:2000 mm |
3.Picking line |
Power:0.75kw Meter:3m Voltage:380v,50hz, three phases Dimension:3000*600*900mm |
4,Ginger Slicing Machine |
Power:0.75 kw Voltage:380v/50hz/Three phase Capacity:300kg/h Size:640*500*850mm Weight:75kg |
5,Water removing machine |
Introduction: This machine uses a flip conveyor belt, so that the material double-sided moisture is evenly blown off, can be used for a variety of fruits and vegetables after cleaning air-drying Dimension:4100*1200*1600mm Weight:600kg Power:9.1kw With mesh can protect material go out when the wind is strong |

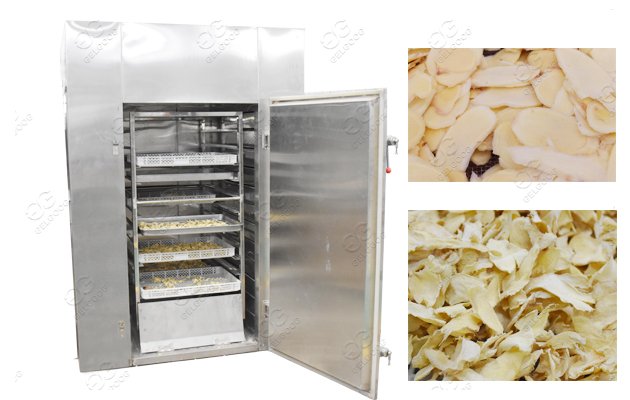

6,Ginger slicer drying oven |
Drying cart:8 Trays:192 pieces Heating power:60kw Size:4930×2260×2260mm Weight:2000kg Capacity:576kg per time Circulating fan: 4 pieces |
7.Crushing machine |
Spindle Speed 720r/min Feed Size ≤100mm Output Size 4-6mm Power 4kw-4p Dimensions 500×600×1200mm |
8,Lifting machine |
Power:0.75 kw Voltage:380v/50hz/Three phase Size:1800*1000*1500 mm Conveying speed is adjustable. |
9,Ginger Powder Grinding Machine |
Power:5.5kw Voltage:380V/50HZ/Three phase Size:750*600*1370mm Weight:250kg Fineness:20-120mesh |
10,Powder lifting machine |
Voltage:380V/50HZ Volume:118 L Capacity:3 m³/h Hopper size:880*850*810mm Feeding height: 1600mm (can be customized) Overall weight:80kg Note: With cover to avoid the ginger powder fly into the air. |
11,Powder filling machine |
Power:1.5kw Voltage:220V/50HZ/Single phase Weighing range :1-5000g Filling accuracy:1% (different materials vary) Filling speed:30-45 bags / min Machine size: 690*1060*2000mm |
