Juice Filter Machine Stainless steel

  • Support Customization: Yes
  • Brand: Gelgoog
  • Warranty Time:12 Months
  • Country Of Origin:China
  • Payment: T/T, L/C, Trade Assurance, Western Union
Features
Description:

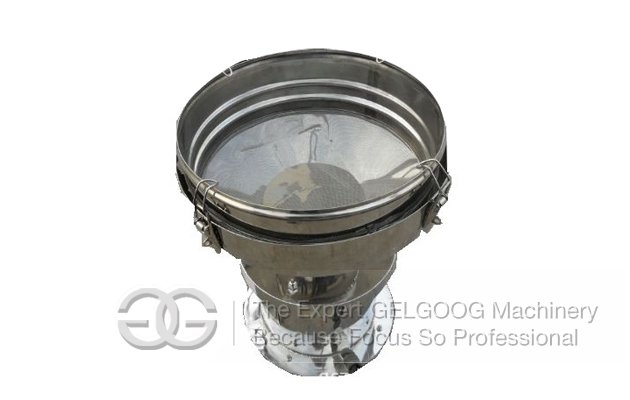

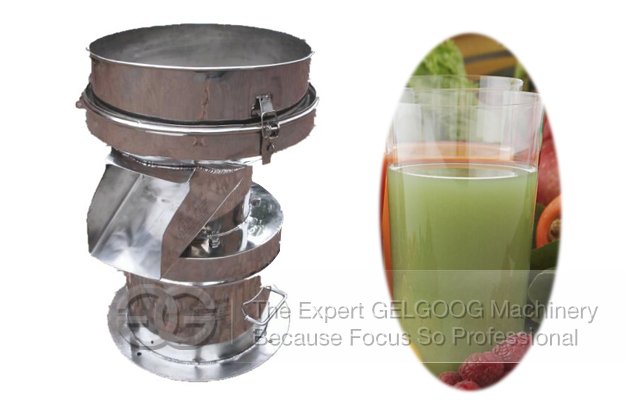

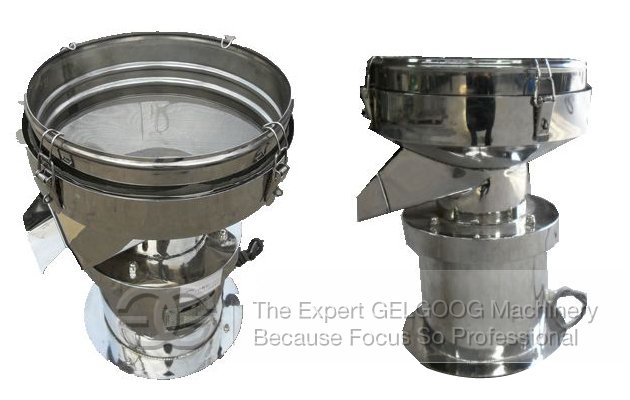

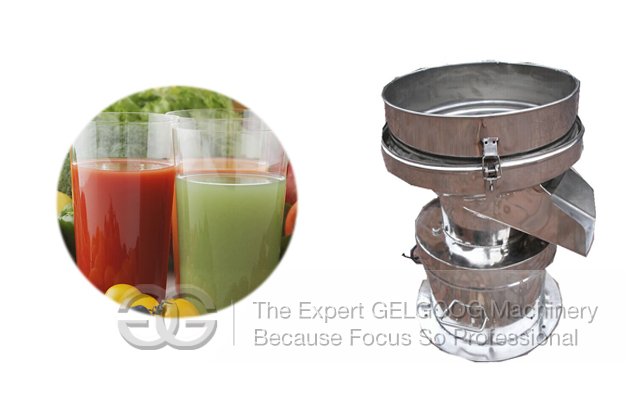

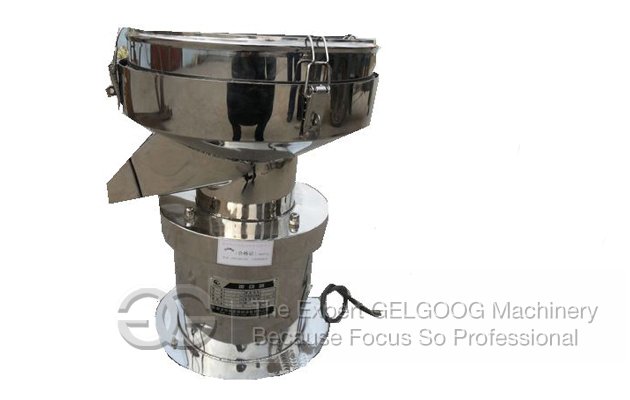

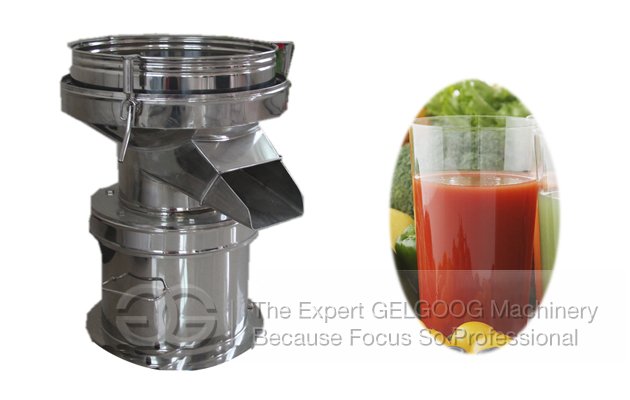

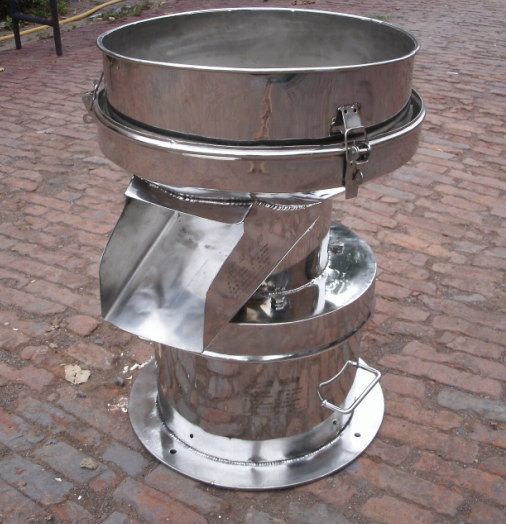

Filter is a kind of small size machine, which is designed with the features of convenient to move, high efficiency, and low noise, small size, suitable for any granule, powder, and mucilage. For example, total 1200 liters 1.1 ratios spray-paint can be filtered by the machine when using 325 Mesh screen net; The processing quantities of flour can reach 700 kg when the screen net of 30M being used,. It is also well-qualified for filtering of ceramic glaze.
Conditions of use:

1, no more than 1000 meters above sea level
2, the ambient temperature: - 5 to 40 degrees Celsius, relative humidity is no more than 90% (below 20 degrees Celsius)
3 and the surrounding medium can no conductive dust and corrosion and damage the insulation gas.

The use and maintenance:
1, before using the machine should be placed, according to the product needed for voltage (220 v / 380 v) configuration earthing protection line power supply is connected.
2, sieve machine can be adjusted according to need and press lock screen screw;Hang up screen lock the rear can use.
3, every time after use to remove dirt, and pay attention to moistureproof, infuse lithium grease to motor bearing on a regular basis.


Feature:
450 type filter sieve is a kind of low noise, high efficiency, easy to move the small vibrating screen filter.It is to put the powder grain grading,liquid filtration combined as one of the single layer filter screen.Applicable to various industries manufacturers with a single screening and filtering.

1. High efficiency, smart design, fit for any kind of powders and serosity.
2. Easy net replacement which only costs 3-5 minutes to finish, easy operating and cleaning.
3. No-block sieving mesh, no powder flying, and the minimum sieving size is 500M or 0.028mm.
4. Impurity and bigger particles can be automatically discharged.
5. Working constantly.
6. Specially designed net frame and long service life for sieving nets.
7. Small volume and easy to be moved.
Technical Data
Model GG-450
standard screen frame 1 frame
Screen diameter φ450 mm
Sieving size 0.038~5 mm
Noise ≤50 dB
Input  ≤5 kg
Voltage 380v
revolving speed: 1440 r/min
Motor 0.12 Kw
Dimension 360*300*470 mm
Weight 42 kg

FAQ
Q. when the product will be deliver ,plz?
A.Generally ,we will delivery commodity within 7 days,except  custom-made.

 Q:What if customers know little about import processing?
 A: Our factory has rich experience in export.We will assist customers with needs step by step, from placing orders to receiving poutry feed manufacturing equipment.

Q: What's the material of the machine?
It is made of stainless steel

Q: Do you supply samples ?
A: We are factory, and making machines costs, Large order , Large discount , we can not offer sample machines .
