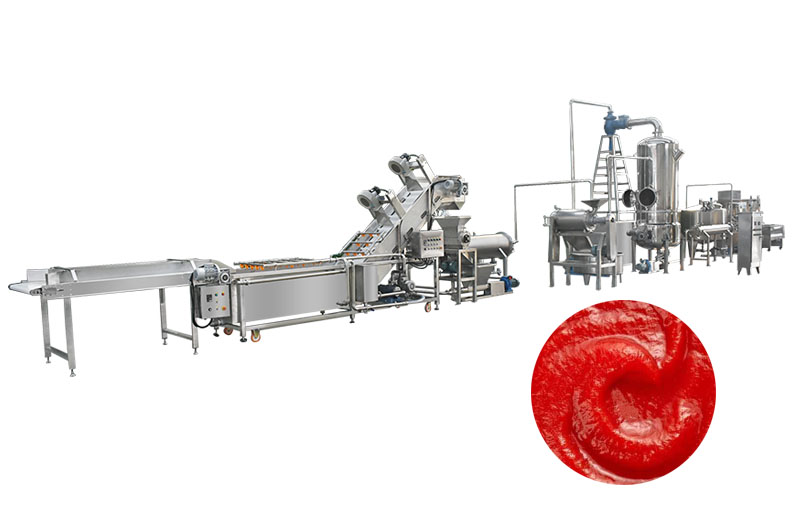

Automatic Tomato Paste Production Line Turnkey

  • Support Customization: Yes
  • Brand: Gelgoog
  • Warranty Time:12 Months
  • Country Of Origin:China
  • Payment: T/T, L/C, Trade Assurance, Western Union
Tomato paste also called ketchup, is a tomato seasoning obtained by pulverizing, beating, concentrating, canning, and sterilizing mature red tomatoes.
Tomato paste production line turkey technical advantages:
The automatic tomato paste production line we provide is mainly fresh and mature tomatoes that are washed, lifted, sorted, crushed and beaten, concentrated and sterilized, and then filled into aseptic ketchup products after aseptic filling.
tomato paste production line for sale

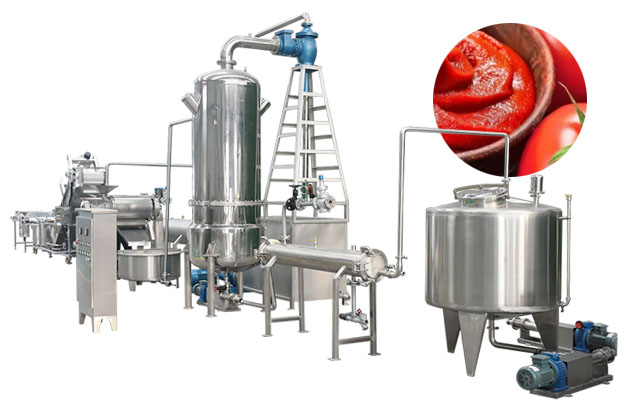

The tomato sauce production line mainly includes five parts: fresh tomato receiving, pre-washing and sorting parts; extraction section; concentration section; pasteurization or sterilization section; aseptic filling section.
Tomato ketchup production line process characteristics :
1:Ketchup has a solid content of more than 4.0% before it can be used for concentration processing. Tomato maturity must be over 90%.
2. Broken is heated quickly and evenly during pre-cooking, and seed removal is to prevent the seeds from being broken during beating. If mixed into the pulp, it will affect the flavor, texture and taste of the product.
3. Pre-cook the tomato puree which has been crushed and seeded and quickly heated to 85 ℃ ~ 90 ℃. In this way, the activities of pectin lipase and galacturonase can be inhibited, the price of pectin substances can be reduced and denatured, and the consistency and spreadability of the sauce can be reduced.
4. The concentrated sauce must be heated to 90 ° C to 95 ° C and then canned. The containers are tinplate cans, toothpaste-shaped plastic bags, and glass bottles. We can also provide suitable ketchup packaging machines according to customer needs.
Technical Data
Tomato Paste Production Line Main Machine  Main Parameters
Hoist Hoist power: 0.75kw
Size: 2000 * 800 * 1600mm

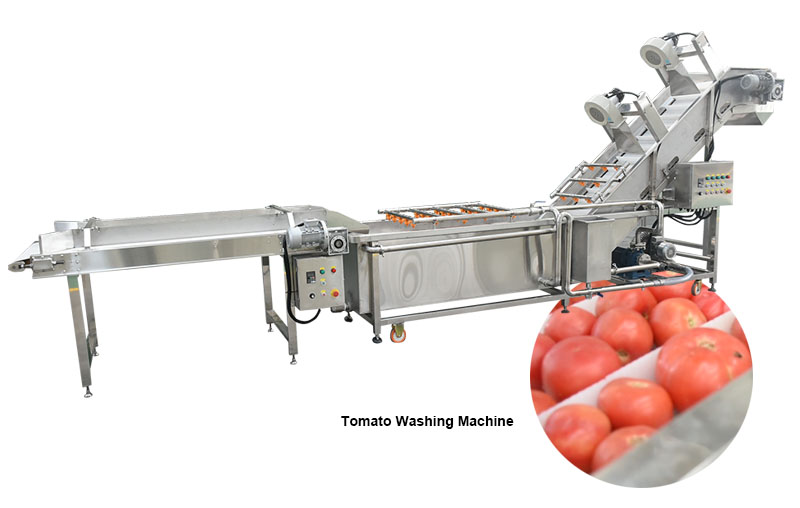

Bubble type tomato washing machne Powder:4.45KW / 380V / 50Hz
Size: 2500x1200x1300mm
Impurity removal machine Size: 3000 * 1000 * 1400
Power: 5.2KW
Broken screw pump  capacity: 0.5-1 ton / hour;
Power: 1.5KW;
Dimensions: 1500 × 500 × 500mm;
Enzyme inactivation equipment  capacity: 1T / H
Size: 1220 × 615 × 1250mm

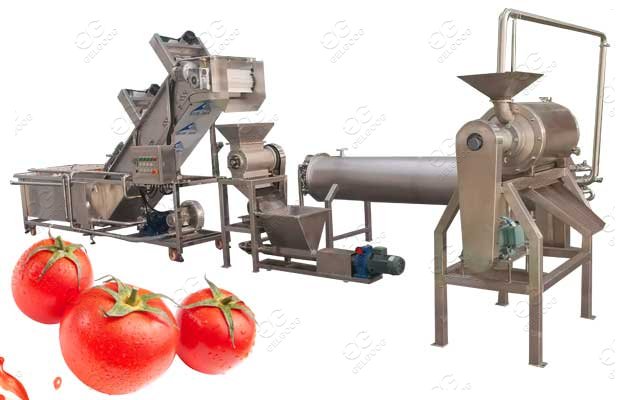

Pulp machine capacity: 1-2.5 tons / hour
Power: 380V, 50Hz, 4Kw;
Temporary storage tank storage tank: 500L;
Exit: φ25.4mm clamp quick-install interface;
Tank body: φ500 × 800 × δ = 2mm;
Discharging height: 200mm, φ25.4mm quick-install interface;
Dimensions: 500 × 1200mm;
 sandwich pans Stirring
 power: 1.5KW
Heating power: 24KW
If the burner is configured: 10W Kcal
Dimensions: 1100 * 980 * 1600
Body size: 800 * 550
Filling machine
1200 * 350 * 350
Voltage 200-250V
Frequency 50 or 60HZ
