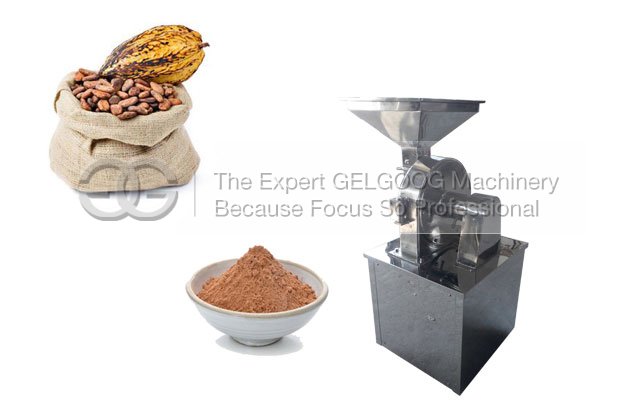

Industrial Cocoa Chocolate Milling Machine

  • Support Customization: Yes
  • Brand: Gelgoog
  • Warranty Time:12 Months
  • Country Of Origin:China
  • Payment: T/T, L/C, Trade Assurance, Western Union
Introduction of Cocoa Milling Machine:
The industrial cocoa chocolate milling machine is mainly used for milling cocoa beans automatically. The cacao milling machine consists of a crusher, a material collector and a vacuum cleaner. It can perfectly solve the phenomenon of dust flying in the process of material crushing, which is your best choice.
 Industrial Cocoa Chocolate Milling Machine
Working principle of Cacao Milling Machine:
The chocolate milling machine consists of a crusher, a material collector and a vacuum cleaner. It can perfectly solve the phenomenon of dust flying in the process of material crushing.
The working principle of this machine is that the material enters the crushing chamber and is crushed under the impact, shear, friction and collision between the high-speed rotating movable tooth disc and fixed tooth plate. After screening through the sieve, it becomes the powder needed.
Advantages of Cacao Milling Machine:
1. The machine is simple in structure, easy to assemble and easy to clean.
2. The machine is particularly simple to operate. The size of the cocoa bean can be controlled by changing the sieve.
3. This machine is made of all stainless steel, which not only looks beautiful, but also fully meets the requirements of "GMP". The cocoa powder produced is healthy and hygienic.
4. The machine has stable performance and even particle size of pulverized powder.
5. The machine can be customized according to the requirements of customers and the actual situation.
Precautions of Cocoa Milling Machine:
1. The external power supply of this machine should be equipped with a suitable circuit breaker according to the power of the machine. The purpose is to automatically cut off the power when the machine is overloaded and the current is too large to protect the motor.
2. This machine ensures that someone is in charge when working.
3. The granulated material particles should not be too large. If the machine is boring (that is, the machine is obviously slowed down due to excessive load or passively stops running), the power should be cut off immediately.
4. If the pulverized particles are too large, they should be crushed by the all-round crusher and then pulverized by the machine.
5.Replace the screen and wash the crusher to avoid water rushing into the motor, fan control box and bearing.
6.Add lubricating oil in time to prolong the service life of the bearing.
Our service for Cocoa Milling Machine:
1. We will test and adjust all the content correctly before delivering the machine.
Once completed, we will provide the customer with detailed pictures to confirm delivery.
3. Operation video and work manual will be provided randomly so that customers can use our machine without any difficulty.
We will provide professional advice and technical support as soon as possible.
5. The spare parts of the machine provide the whole service life and the price is reasonable.
If you have demand for the cocoa milling machine, you can contact us! Email:
Technical Data
Model GG--20B-C GG-30B-C GG40B-C GG60B
Capacity(kg/h) 60-150kg/h 100-300kg/h 160-800kg/h 500-1500kg/h
Revolution of spindle 4500r/min 3800r/min 3400r/min 2800r/min
Grinding size 10-200 mesh
Crusher motor 4kw 5.5kw 11kw 15kw
Cleaner motor 0.75kw
Dimension (mm) 550*600*1250 600*700*1450 800*900*1550 1000*900*1680
Weight (kg) 250 320 550 680
