Features
Introduction

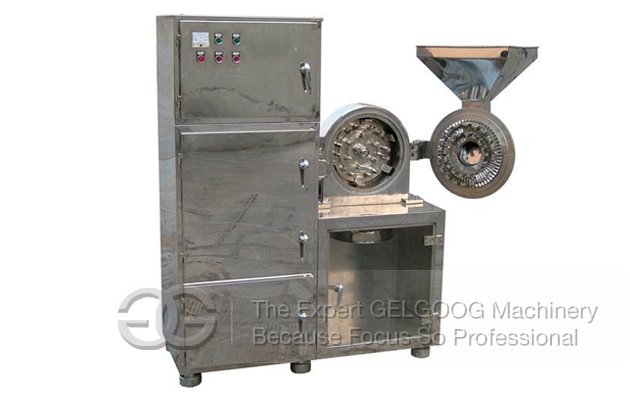

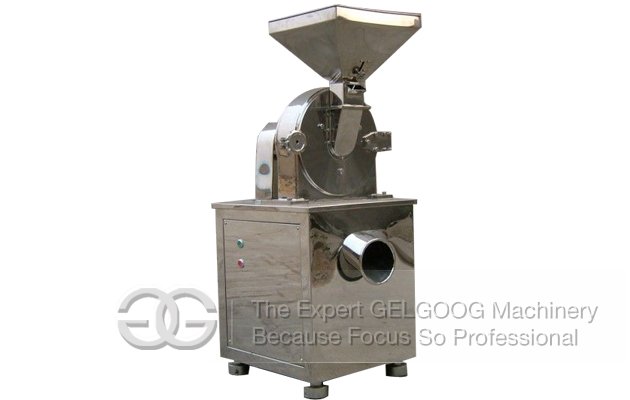

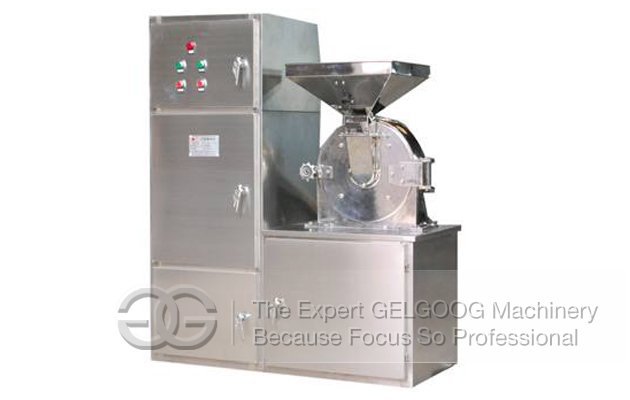

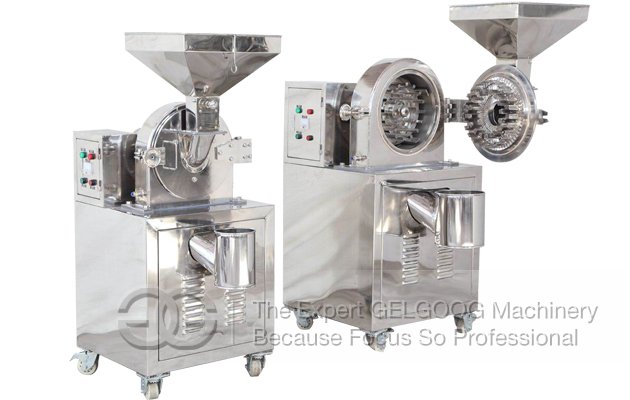

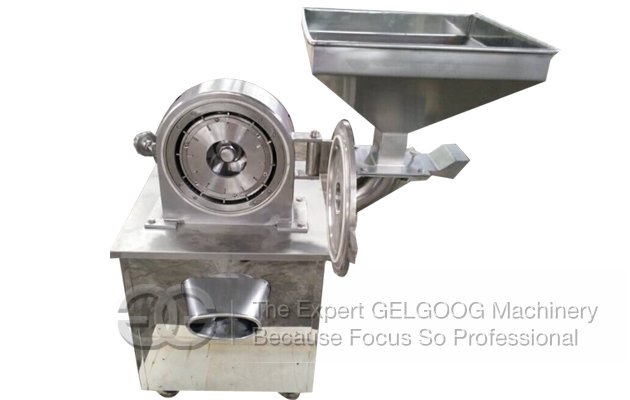

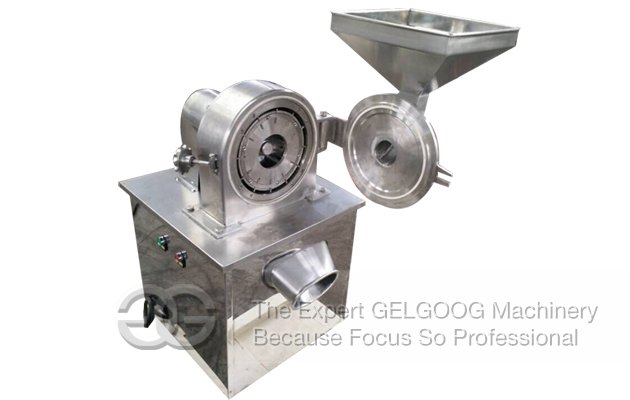

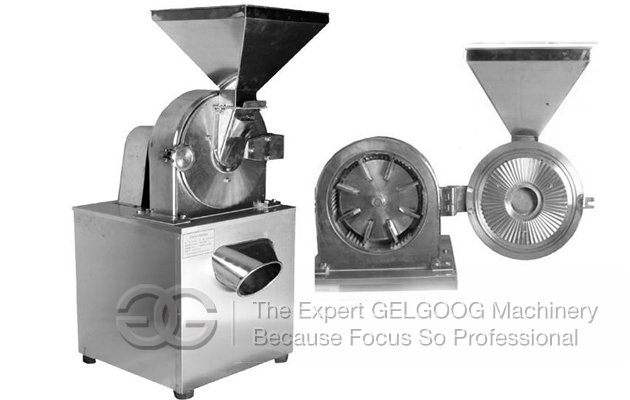

The Stainless Steel Grinding Machine can grind sugar,salt,herbs,spice,ginger,maize,rice.Have different capacitys for your choice. The Multifunctional Grinding Machine uses the relative motion between movable and fixed fluted discs, the raw materials to be crushed undertakes the comprehensive actions such as impacted by teeth, friction, impacted between raw materials are crushed. Its features are simple and solid in structure, stable in operation, high crushed efficiency. The crushed raw material can be discharged through the grinding chamber. Moreover, different size of raw material to be crushed can be got through exchanging screen with different mesh.
It’s inner wall is processed finely, so it is smooth and level.
Advantages:
All the parts in the chamber which contact materials surficial parts are made of stainless steal, it’s in conformity with the requirements of state standard and meet the requirements of GMP.
According to customer needs, may increase water cooling device and conveyor screw.Details pls contact us.
There are also Ginger washing line for your choice.
There are also Ginger washing line for your choice.
Technical Data
| Model | GG--20B-C | GG-30B-C | GG40B-C | GG60B |
| Capacity(kg/h） | 60-150kg/h | 100-300kg/h | 160-800kg/h | 500-1500kg/h |
| Revolution of spindle | 4500r/min | 3800r/min | 3400r/min | 2800r/min |
| Grinding size | 10-200 mesh | |||
| Crusher motor | 4kw | 5.5kw | 11kw | 15kw |
| Cleaner motor | 0.75kw | |||
| Dimension (mm) | 550*600*1250 | 600*700*1450 | 800*900*1550 | 1000*900*1680 |
| Weight (kg) | 250 | 320 | 550 | 680 |
FAQ
Q:What’s the Packing and Delivery ?
A: We adopt the export standard wooden packing . And we can deliever through sea , DHL , Train transportation
Q. when the product will be deliver ,plz?
A.Generally ,we will delivery commodity within 7 days,except custom-made.
Q:What if customers know little about import processing?
A: Our factory has rich experience in export.We will assist customers with needs step by step, from placing orders to receiving poutry feed manufacturing equipment.
Q: What's the material of the machine?
It is made of stainless steel
Q: Do you supply samples ?
A: We are factory, and making machines costs, Large order , Large discount , we can not offer sample machines .
